数字视频显微镜 WF4515ZT

检查实验室偏振

概述

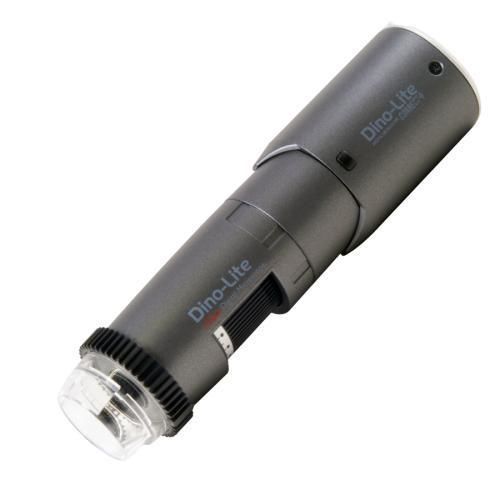

Dino-Lite WF4515ZT 是 Universal 系列的混合无线/USB 数字显微镜。可通过 USB 有线使用，也可配合可拆卸的 WF-20 适配器进行无线使用，适用于生产、实验室及现场的检测与测量工作，部署灵活。

主要特点

• 无线或有线工作模式（含 WF-20 适配器）
• 放大倍数范围 20–220×
• 1.3 MP CMOS 传感器（1280×1024），最高 30 fps
• Automatic Magnification Reading (AMR) 实现放大倍数自动读取
• 可调线偏光片以减少眩光
• Flexible LED Control (FLC) 与包含扩散罩的 8 颗白色 LED
• 提供测量与校准支持；microtouch 触控传感器

Working distance / Field of view / Depth of field（单位 = mm）
注：列示数值可能略有差异。* 未装前盖时。
MAGNIFICATION RATE | WORKING DISTANCE | FIELD OF VIEW (X) | FIELD OF VIEW (Y) | DEPTH OF FIELD
20 | 60.2 | 19.5 | 14.6 | 2.5
30 | 33.5 | 13.0 | 9.7 | 1.8
40 | 20.9 | 9.8 | 7.3 | 1.5
50 | 13.9 | 7.8 | 5.8 | -
60 | 9.7 | 6.5 | 4.8 | -
70 | 7.1 | 5.6 | 4.2 | 1.0
80 | 5.5 | 4.9 | 3.6 | -
90 | 4.5 | 4.3 | 3.2 | -
100 | 4.1 | 3.9 | 2.9 | -
110 | 4.0 | 3.6 | 2.7 | -
120 | 4.1 | 3.3 | 2.4 | -
130 | 4.5 | 3.0 | 2.2 | -
140 | 5.0 | 2.8 | 2.1 | -
150 | 5.6 | 2.6 | 1.9 | -
160 | 6.3 | 2.4 | 1.8 | -
170 | 7.1 | 2.3 | 1.7 | -
180 | 8.0 | 2.2 | 1.6 | -
190 | 8.9 | 2.1 | 1.5 | -
200 | 9.9 | 2.0 | 1.5 | -
210 | 10.9 | 1.9 | 1.4 | -
220 | 11.9 | 1.8 | 1.3 | 0.1

规格（详细）
照明
Light / LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear

光学
Magnification: 20x ~ 220x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflection coating

传感器
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps

兼容性
Interface: USB 2.0
Operating system (cable only): Windows 7, 8, 10 & 11; MacOS 10.11.6 and up (cable only)
Software: DinoCapture 2.0 (Windows) cable + wireless, DinoXcope (Mac OS) cable only, DinoConnect wireless only
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
WiFi: Yes

外壳
Housing material: Composite / plastic housing
Dimensions: 11.4 cm (L) x 3.3 cm (D)
Weight: 111 g
Cable length: 1.8 m

功能
Special feature: Automatic Magnification Reading (AMR), Flexible LED Control (FLC)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No

包装清单
Microscope, WF-20 wireless adapter, carry pouch, software CD, calibration target, user manual, N3C-O (Open cap), N3C-C (Closed cap), N3C-D (diffuser cap), N3C-E (Extension cap), N3C-L (Long cap), N3C-S (Side light cap)

附加信息
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range: €900,00 - €1100,00
