兽医外科手术兽用激光仪 Thulase Vet

二极管钬台面式

Présentation

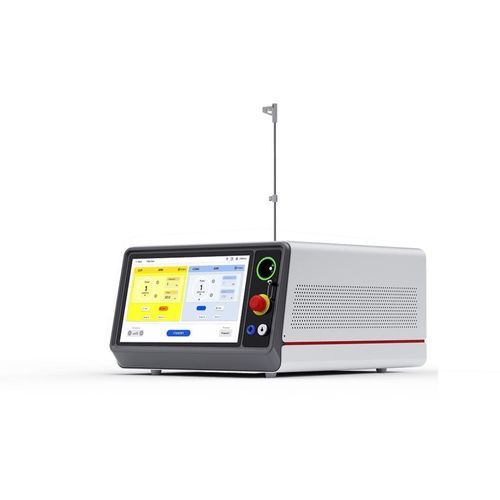

Portable Veterinary Thulium Laser Lithotripsy System. Precision soft tissue surgery; veterinary lithotripsy procedures; advanced clinical surgical use. Thulium laser technology provides an excellent balance between cutting precision and coagulation, enabling advanced veterinary surgical applications with minimal thermal impact. This platform is designed for partners targeting high-end veterinary markets.

Avantages pour le distributeur

• Premium product positioning
• Strong differentiation from standard diode systems
• Higher margin potential
• Suitable for advanced and emerging markets

Fiber
Six different fiber sizes are available to accommodate various clinical applications.

• Fiber Size (Core Diameter): 200 μm
• 272 μm
• 365 μm
• 550 μm
• 800 μm
• 1000 μm

Technical parameters (table)
Parameter | Thu-Vet-300 | Thu-Vet-400 | Thu-Vet-600
Order Model | Thu-Vet-300 | Thu-Vet-400 | Thu-Vet-600
Wavelength | 1940nm±5nm | 1940nm±5nm | 1940nm±5nm
Maximum Power | 300W | 400W | 600W
Pilot Beam | 532nm / 635nm | 532nm / 635nm | 532nm / 635nm
Operation Mode | CW/Pulse | CW/Pulse | CW/Pulse
Energy/Pulse | Up to 3J | Up to 4J | Up to 4J
Repetition Rate | 1-3000hz | 1-4000hz | 1-6000hz
Dimensions | 409(W)*518(L)*254(H) mm | 409(W)*518(L)*254(H) mm | 450(W)*536(L)*271(H) mm
Weight | 30Kg | 33Kg | 42Kg

Résumé produit / domaines d'application
Designed for veterinary stone lithotripsy and precision soft tissue surgery. Advanced clinical surgical use with minimized thermal impact and high cutting/coagulation control.

Caractéristiques / spécifications techniques

• Product family: Thu-Vet series
• Wavelength: 1940 nm ± 5 nm
• Available maximum power options: 300 W, 400 W, 600 W
• Pilot beam options: 532 nm and 635 nm
• Operation modes: Continuous Wave (CW) and Pulse
• Energy per pulse: up to 3 J (300 model), up to 4 J (400/600 models)
• Repetition rate ranges: 1–3000 Hz (300), 1–4000 Hz (400), 1–6000 Hz (600)
• Fiber core diameters available: 200 µm, 272 µm, 365 µm, 550 µm, 800 µm, 1000 µm
• Dimensions (examples): 409×518×254 mm (300/400), 450×536×271 mm (600)
• Weights (examples): 30 Kg (300), 33 Kg (400), 42 Kg (600)
