双通无针输液接头 RP series4通3 通型5通型
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 技术参数
- 3 通型, 双通, 4通, 5通型, 6通道
- 应用
- 重症监护
产品介绍
产品名称

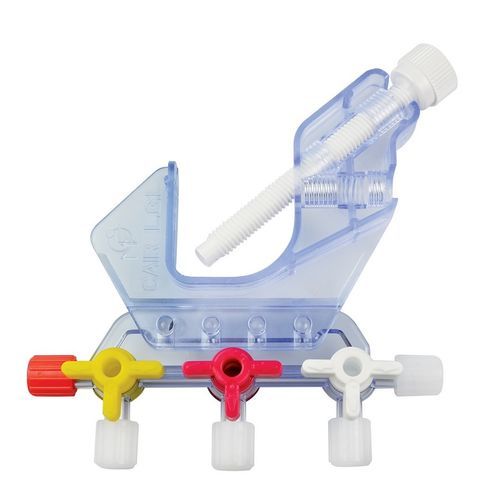

带支架的分流器（RP系列）— 适用于输液，2至6个旋塞阀配置；可选男性/男性延长管，长度：50、100、150、200 cm。
产品表
Reference | Description | Female ports | Extension tubing length (cm) | Inner box qty. | Outer box qty.
RP2000A | 2 stopcocks manifolds with holder | 4 | - | 50 | 200
RPB2305A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 50 | 20 | 160
RPB2310A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 100 | 20 | 160
RPB2315A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 150 | 20 | 160
RPB2320A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 200 | 20 | 60
RP3000A | 3 stopcocks manifolds with holder | 5 | - | 50 | 200
RPB3305A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 50 | 50 | 160
RPB3310A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 100 | 20 | 160
RPB3315A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 150 | 20 | 160
RPB3320A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 200 | 20 | 60
RP4000A | 4 stopcocks manifolds with holder | 6 | - | 50 | 200
RPB4305A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 50 | 15 | 120
RPB4310A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 100 | 15 | 120
RPB4315A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 150 | 15 | 120
RPB4320A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 200 | 15 | 120
RPB5310A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 100 | 15 | 120
RPB5315A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 150 | 15 | 120
RPB5320A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 200 | 15 | 120
RP6000A | 6 stopcocks manifolds with holder | 8 | - | 10 | 160
RPB6305A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 50 | 15 | 120
RPB6310A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 100 | 15 | 120
RPB6320A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 200 | 15 | 120
监管信息
医疗器械分类：IIa。CE 0459。使用前请阅读说明书。
特性 / 技术规格
带支架的分流器（RP系列）— 适用于输液，2至6个旋塞阀配置；可选男性/男性延长管，长度：50、100、150、200 cm。
产品表
Reference | Description | Female ports | Extension tubing length (cm) | Inner box qty. | Outer box qty.
RP2000A | 2 stopcocks manifolds with holder | 4 | - | 50 | 200
RPB2305A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 50 | 20 | 160
RPB2310A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 100 | 20 | 160
RPB2315A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 150 | 20 | 160
RPB2320A | 2 stopcocks manifolds with holder and male/male extension line | 4 | 200 | 20 | 60
RP3000A | 3 stopcocks manifolds with holder | 5 | - | 50 | 200
RPB3305A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 50 | 50 | 160
RPB3310A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 100 | 20 | 160
RPB3315A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 150 | 20 | 160
RPB3320A | 3 stopcocks manifolds with holder and male/male extension line | 5 | 200 | 20 | 60
RP4000A | 4 stopcocks manifolds with holder | 6 | - | 50 | 200
RPB4305A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 50 | 15 | 120
RPB4310A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 100 | 15 | 120
RPB4315A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 150 | 15 | 120
RPB4320A | 4 stopcocks manifolds with holder and male/male extension line | 6 | 200 | 15 | 120
RPB5310A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 100 | 15 | 120
RPB5315A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 150 | 15 | 120
RPB5320A | 5 stopcocks manifolds with holder and male/male extension line | 7 | 200 | 15 | 120
RP6000A | 6 stopcocks manifolds with holder | 8 | - | 10 | 160
RPB6305A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 50 | 15 | 120
RPB6310A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 100 | 15 | 120
RPB6320A | 6 stopcocks manifolds with holder and male/male extension line | 8 | 200 | 15 | 120
监管信息
医疗器械分类：IIa。CE 0459。使用前请阅读说明书。
特性 / 技术规格
- 产品系列：带支架的分流器，适用于输液（2至6个旋塞阀）。
- 型号 / 可选项：RP2000A；RPB23xx系列；RP3000A；RPB33xx系列；RP4000A；RPB43xx系列；RPB53xx系列；RP6000A；RPB63xx系列。
- 母口数量：随型号而异（4、5、6、7或8）。
- 延长管长度：50、100、150、200 cm（带延长管的型号）。
- 包装：各型号的内盒/外箱数量见表。
- 预期用途：输液分流器 / 多通路旋塞阀组件。
- 备注：医疗器械 IIa 类，CE 标记（0459）。使用前请参阅说明书。
