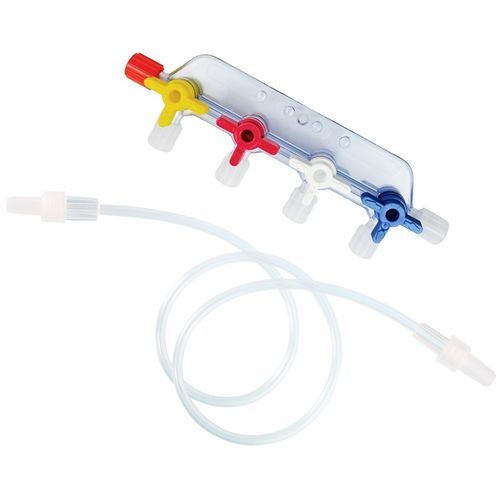

双通无针输液接头 RPB series4通3 通型5通型
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 技术参数
- 3 通型, 双通, 4通, 5通型, 6通道
- 应用
- 重症监护
产品介绍
产品说明
带有2至6个止阀（stopcock）的阀门分配歧管，配备共挤PE/PVC公对公延长导管，适用于输液场景。共挤PE/PVC可减少药物与PVC之间的相互作用，有助于维持药物在给药过程中的相容性。下表列出可用参考型号、描述、雌接口数量、延长管长度（cm）及包装数量。
参考表
Reference | Description | Female ports | Extension tubing length (cm) | Inner box qty. | Outer box qty.
RPB2305 | 2 stopcocks manifolds with male/male extension line | 4 | 50 | 20 | 320
RPB2310 | 2 stopcocks manifolds with male/male extension line | 4 | 100 | 20 | 320
RPB2315 | 2 stopcocks manifolds with male/male extension line | 4 | 150 | 20 | 320
RPB2320 | 2 stopcocks manifolds with male/male extension line | 4 | 200 | 20 | 320
RPB3305 | 3 stopcocks manifolds with male/male extension line | 5 | 50 | 20 | 320
RPB3310 | 3 stopcocks manifolds with male/male extension line | 5 | 100 | 20 | 320
RPB3315 | 3 stopcocks manifolds with male/male extension line | 5 | 150 | 20 | 320
RPB3320 | 3 stopcocks manifolds with male/male extension line | 5 | 200 | 20 | 320
RPB4305 | 4 stopcocks manifolds with male/male extension line | 6 | 50 | 15 | 240
RPB4310 | 4 stopcocks manifolds with male/male extension line | 6 | 100 | 15 | 240
RPB4315 | 4 stopcocks manifolds with male/male extension line | 6 | 150 | 15 | 240
RPB4320 | 4 stopcocks manifolds with male/male extension line | 6 | 200 | 15 | 240
RPB5305 | 5 stopcocks manifolds with male/male extension line | 7 | 50 | 15 | 240
RPB5310 | 5 stopcocks manifolds with male/male extension line | 7 | 100 | 15 | 240
RPB5315 | 5 stopcocks manifolds with male/male extension line | 7 | 150 | 15 | 240
RPB5320 | 5 stopcocks manifolds with male/male extension line | 7 | 200 | 10 | 160
RPB6305 | 6 stopcocks manifolds with male/male extension line | 8 | 50 | 10 | 160
RPB6310 | 6 stopcocks manifolds with male/male extension line | 8 | 100 | 10 | 160
RPB6315 | 6 stopcocks manifolds with male/male extension line | 8 | 150 | 10 | 160
RPB6320 | 6 stopcocks manifolds with male/male extension line | 8 | 200 | 10 | 160
监管信息
医疗器械：IIa类，CE 0459。请阅读说明书及使用注意事项。
特征 / 技术规格
带有2至6个止阀（stopcock）的阀门分配歧管，配备共挤PE/PVC公对公延长导管，适用于输液场景。共挤PE/PVC可减少药物与PVC之间的相互作用，有助于维持药物在给药过程中的相容性。下表列出可用参考型号、描述、雌接口数量、延长管长度（cm）及包装数量。
参考表
Reference | Description | Female ports | Extension tubing length (cm) | Inner box qty. | Outer box qty.
RPB2305 | 2 stopcocks manifolds with male/male extension line | 4 | 50 | 20 | 320
RPB2310 | 2 stopcocks manifolds with male/male extension line | 4 | 100 | 20 | 320
RPB2315 | 2 stopcocks manifolds with male/male extension line | 4 | 150 | 20 | 320
RPB2320 | 2 stopcocks manifolds with male/male extension line | 4 | 200 | 20 | 320
RPB3305 | 3 stopcocks manifolds with male/male extension line | 5 | 50 | 20 | 320
RPB3310 | 3 stopcocks manifolds with male/male extension line | 5 | 100 | 20 | 320
RPB3315 | 3 stopcocks manifolds with male/male extension line | 5 | 150 | 20 | 320
RPB3320 | 3 stopcocks manifolds with male/male extension line | 5 | 200 | 20 | 320
RPB4305 | 4 stopcocks manifolds with male/male extension line | 6 | 50 | 15 | 240
RPB4310 | 4 stopcocks manifolds with male/male extension line | 6 | 100 | 15 | 240
RPB4315 | 4 stopcocks manifolds with male/male extension line | 6 | 150 | 15 | 240
RPB4320 | 4 stopcocks manifolds with male/male extension line | 6 | 200 | 15 | 240
RPB5305 | 5 stopcocks manifolds with male/male extension line | 7 | 50 | 15 | 240
RPB5310 | 5 stopcocks manifolds with male/male extension line | 7 | 100 | 15 | 240
RPB5315 | 5 stopcocks manifolds with male/male extension line | 7 | 150 | 15 | 240
RPB5320 | 5 stopcocks manifolds with male/male extension line | 7 | 200 | 10 | 160
RPB6305 | 6 stopcocks manifolds with male/male extension line | 8 | 50 | 10 | 160
RPB6310 | 6 stopcocks manifolds with male/male extension line | 8 | 100 | 10 | 160
RPB6315 | 6 stopcocks manifolds with male/male extension line | 8 | 150 | 10 | 160
RPB6320 | 6 stopcocks manifolds with male/male extension line | 8 | 200 | 10 | 160
监管信息
医疗器械：IIa类，CE 0459。请阅读说明书及使用注意事项。
特征 / 技术规格
- 产品系列：带共挤PE/PVC延长导管的阀门分配歧管（输液配件）
- 材料：共挤PE/PVC（延长导管为共挤PE/PVC）
- 可用配置：2、3、4、5、6个stopcock的歧管（参考：RPB23xx、RPB33xx、RPB43xx、RPB53xx、RPB63xx）
- 雌接口数量：2阀型号=4，3阀型号=5，4阀型号=6，5阀型号=7，6阀型号=8
- 延长管长度（cm）：50、100、150、200
- 包装：各参考型号的内盒与外箱数量见表
- 分类：医疗器械 IIa 类，CE 标记（0459）
