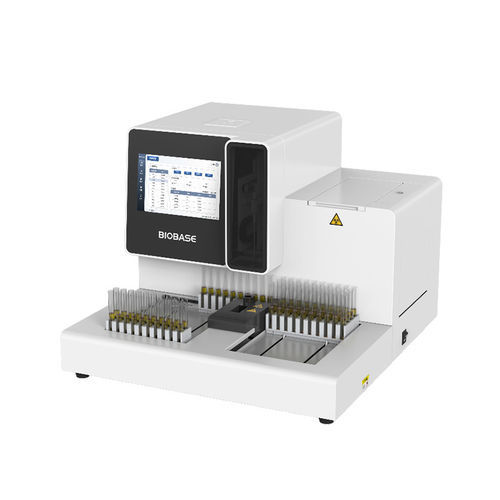

自动尿液分析仪 BH-QNY01

台式比色法触摸屏

Introduction
Urine analyzer is an automatic instrument for the determination of certain chemical components in urine. It is an important tool for automated urine inspection in medical laboratory. It has the advantages of simple operation and fast operation. Under the control of the computer, the instrument collects and analyzes the color information of various reagent blocks on the test belt, and converts a series of signals to output the chemical composition content in the urine.

Product information

• Brand: BIOBASE
• Product origin: CHINA
• Delivery time: Within 7 days
• Supply capacity: Factory Direct Supply
• Model: BH-QNY01, BH-QNY02

Features

• Built-in 10.1-inch touch screen, built-in thermal printer.
• Sample delivery, injection, droplet, analysis and report output are completed automatically by the instrument.
• High-precision sample dispenser is used to ensure thorough reaction and improve the accuracy of test results.
• Automatic strip selection chamber, accommodating 600 test strips at the same time.
• Supports closed puncture analysis, greatly improving biosafety.

Technical Parameters (table)
Model: BH-QNY01 | BH-QNY02
Cascade Function: No | Yes
Principle: Photoelectric colorimetry
Throughput: 240 tests/hour
Screen: 10.1-inch touch screen
Memory: Can store more than 1,000,000 test reports
Printer: Built-in thermal printer
Interface: USB, RS232, network interface
Barcode Scanner: Can be optional
Range of Application: 9, 10, 11, 14 test strip
Items: 9 test strip: GLU, BIL, KET, pH, BLD, PRO, URO, NIT, LEU; 10 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU; 11 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC; 14 test strip: GLU, BIL, KET, SG, pH, BLD, PRO, URO, NIT, LEU, VC, CRE, CAL, MCA
Sample Rack Capacity: 100pcs samples (10pcs test tube racks)
Reagent Tank Capacity: 600pcs
Data Retrieval: Can be searched by actual date, range date, urine sample number, name, barcode, etc.
Automatic Sensing: Automatically detects and analyzes after placing the sample
Calibration Function: Yes
Power: 130W
Power Supply: AC100~240V, 50/60Hz
External Size (W*D*H): 662*730*520mm | 662*780*520mm
Net Weight: 48kg | 51.5kg
Packing Size (W*D*H): 805*880*600mm; 430*340*590mm (parts)
Gross Weight: 76.5kg; 15kg | 80kg; 15kg

Remark
The machine comes standard with 100 test strips.

Caractéristiques / spécifications techniques

• Principle: Photoelectric colorimetry
• Throughput: 240 tests/hour
• Screen: 10.1-inch touch screen
• Memory capacity: >1,000,000 test reports
• Printer: Built-in thermal printer
• Interfaces: USB, RS232, network
• Optional: Barcode scanner
• Test strip support: 9/10/11/14 types (see full items list)
• Sample rack capacity: 100 samples (10 racks)
• Reagent capacity: 600 test strips
• Power: 130W; AC100~240V, 50/60Hz
• Dimensions (W*D*H): BH-QNY01: 662*730*520mm; BH-QNY02: 662*780*520mm
• Net weight: BH-QNY01: 48kg; BH-QNY02: 51.5kg
