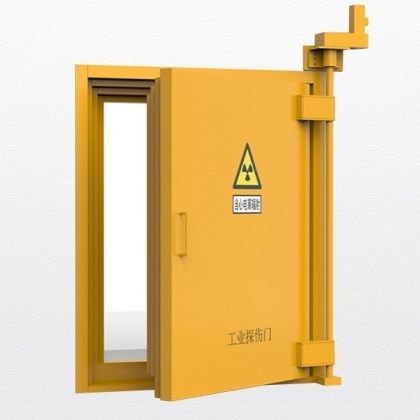

防辐射门 铠装防X光密封
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 功能
- 防辐射, 铠装, 防X光, 空气密封, 密封
- 应用领域
- 用于医院, 用于医疗机构, 用于放射科, 用于放射疗法, 核医学
- 开合方式
- 滑动式
- 材料
- 不锈钢, 衬铅, 石蜡
- 其他特性
- 自动, 密封, 防止电离辐射
产品介绍
Product Introduction
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.
Product Performance
Technical Parameters
Technical parameters are provided visually on the product page (image-based). Key technical data described on the page include the shielding stack-up (30 mm lead plus 120 mm boron-containing polyethylene paraffin), door body and panel materials and thicknesses, and motor/environmental protection ratings.
Application Fields
Caractéristiques / spécifications techniques
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.
Product Performance
- Door surface treatment: sandblasting and fluorocarbon coating.
- Motor rating: motor meets IP54 dustproof and waterproof rating.
- Door integrity: shielding materials are continuous and intact; the lead sheet inside the door body is tightly fitted to the frame to prevent radiation leakage caused by looseness or gaps.
- Process: 30mm Pb + 120mm boron-containing polyethylene paraffin.
- Material: Door panel thickness 1.0 mm; Door body: 10 mm Q235 steel plate.
- Motor: branded motor, equipped with high-load-bearing rails and cover plates.
- Protection: equipped with a special anti-fingerprint mirror finish belt for radiation protection.
- Color options: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
- Frame requirement: frame is supported by No.24 channel steel.
Technical Parameters
Technical parameters are provided visually on the product page (image-based). Key technical data described on the page include the shielding stack-up (30 mm lead plus 120 mm boron-containing polyethylene paraffin), door body and panel materials and thicknesses, and motor/environmental protection ratings.
Application Fields
- Department of Radiology: Comprehensive imaging diagnosis and interventional therapy using X-rays, gamma rays and other radiation to render images of internal bodily structures and organs for evaluation of anatomy, physiology and pathology.
- Department of Radiation Oncology: Localized therapeutic modality using ionizing radiation for cancer treatment, including X-rays, electron beams, proton beams and radioactive isotope emissions.
- Department of Nuclear Medicine: Uses nuclear science technologies for disease diagnosis and treatment; integrates imaging, therapeutic services, research and teaching.
Caractéristiques / spécifications techniques
- Shielding composition: 30 mm lead (Pb) plus 120 mm boron-containing polyethylene paraffin.
- Door panel: 1.0 mm thick (face panel).
- Door body: 10 mm Q235 steel plate.
- Motor protection: IP54 dustproof and waterproof rating; branded motor recommended.
- Structural support: frame supported by No.24 channel steel; lead sheet tightly fitted to frame to avoid gaps.
- Surface finish options: sandblasted + fluorocarbon coating; 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spray.
- Additional features: high-load-bearing rails and cover plates; anti-fingerprint mirror finish belt for radiation protection.
