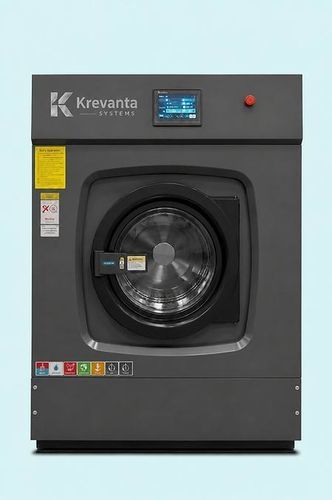

前开式洗衣甩干机 KS-W50

概述
KS-W50 工业洗脱机，额定容量 50 kg，专为连续重负荷洗衣作业设计。采用软挂式悬挂结构，内筒与外槽为 SUS304 不锈钢，配备微处理器控制和变频器（VFD），实现精确的程序控制与节能运行。

适用场景
适用于医院、酒店洗衣房、商业洗衣厂、纺织租赁公司、工业洗衣和处理大量日常洗涤物的医疗机构等，需要高脱水效率和可靠运行的场所。

主要特点

• 额定容量50 kg；最佳洗涤负荷42–45 kg
• SUS304 不锈钢内筒与外槽，防腐耐用
• 软挂式悬挂，降低振动与地面荷载
• 变频器（VFD）实现平滑加速与精确转速控制
• 电加热或蒸汽加热可选
• 可编程微处理器控制，多种洗涤程序
• 高脱水：最高700 RPM（G 值 266），降低残留含水量
• 便于维护，使用寿命长

技术参数
Model: KS-W50
Nominal Capacity: 50 kg
Optimal Wash Load: 42–45 kg
Drum Diameter: 970 mm
Drum Depth: 680 mm
Motor Power: 5.5 kW
Inverter Power: 7.5 kW
Wash Speed: 35 RPM
Maximum Extraction Speed: 700 RPM
G-Factor: 266
Heating Method: Electric / Steam
Electric Heating Power: 24 kW
Steam Consumption: 45 kg/h
Steam Pipe Diameter: 33 mm
Drain Outlet: 140 mm
Water Inlet: 40.5 mm
Compressed Air Pressure: 0.4–0.6 MPa
Water Consumption: ≤650 kg per Cycle
Noise Level: ≤65 dB
Power Supply: 380 V / 3 Phase / 50 Hz
Machine Dimensions: 1500 × 1450 × 1900 mm
Machine Volume: 4.1 m³
Net Weight: 1,450 kg

• Model: KS-W50
• Nominal Capacity: 50 kg
• Optimal Wash Load: 42–45 kg
• Drum Diameter: 970 mm
• Drum Depth: 680 mm
• Motor Power: 5.5 kW
• Inverter Power: 7.5 kW
• Wash Speed: 35 RPM
• Maximum Extraction Speed: 700 RPM
• G-Factor: 266
• Heating Method: Electric / Steam
• Electric Heating Power: 24 kW
• Steam Consumption: 45 kg/h
• Steam Pipe Diameter: 33 mm
• Drain Outlet: 140 mm
• Water Inlet: 40.5 mm
• Compressed Air Pressure: 0.4–0.6 MPa
• Water Consumption: ≤650 kg per Cycle
• Noise Level: ≤65 dB
• Power Supply: 380 V / 3 Phase / 50 Hz
• Machine Dimensions: 1500 × 1450 × 1900 mm
• Machine Volume: 4.1 m³
• Net Weight: 1,450 kg
