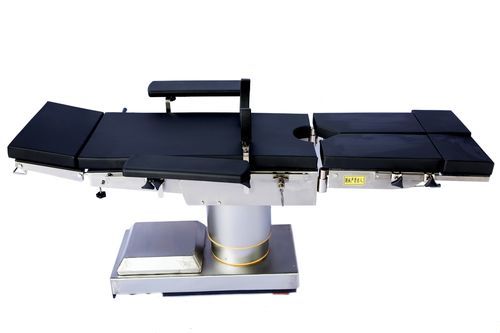

妇科手术台 SXD8804-B-I

通用矫形眼科

产品介绍
SXD8804-B由制造商自主研发，采用先进的控制与驱动技术。该电液动手术台适用于多种手术，配备与C-ARM兼容的透视用台面。

独特功能

• 可垂直移动的台面采用透视用高强度复合板，适合术中C-ARM影像；配备电液动制动系统以确保定位稳定。
• 圆形覆盖体与底座均为不锈钢制，具防水防尘表面，适用于临床环境；电液动驱动噪音低、性能可靠。
• 可选内置应急电源，断电时可自动充电并继续工作。
• 台面升降、特伦德伦堡/反特伦德伦堡、侧倾及靠背上抬由电液伺服控制；伺服配进口电磁阀与油泵系统，确保动作精确。水平滑动与制动为电控。

技术参数
Table size : 2040 (±20) × 500 (±20) mm
Table height : 700(±20)—1050(±20) mm
Lateral tilt : ≥25° electrical motion
Trendelenburg & reverse trendelenburg : ≥25° electrical motion
Back plate up folding : ≥75°
Back plate down folding : ≥30°
Head plate adjustment : ≥90°
Kidney bridge adjustment : ≥120 mm
Electric horizontal sliding : ≥340 mm
Leg plate outwards : ≥90°

配置
No - Accessories name - Qty - Unit
1 - Table body - 1 - set
2 - Mattress - 1 - set
3 - Motor - 6 - sets
4 - Anesthetic screen - 1 - set
5 - Hand support - 2 - pcs
6 - Leg support - 2 - pcs
7 - Kidney bridge - 2 - pcs
8 - Hand remoter - 1 - pc
9 - Slippage system - 1 - set
10 - Slippage system - 1 - pc
11 - Guarantee/warranty card - 1 - set
12 - Operation manual - 1 - set

型号
Listed model in product specifics: SXD8805 (product commercial name: SXD8804-B-I)

特性 / 技术规格

• Table size: 2040 (±20) × 500 (±20) mm
• Adjustable table height: 700(±20)—1050(±20) mm
• Lateral tilt: ≥25° (electrical)
• Trendelenburg & reverse Trendelenburg: ≥25° (electrical)
• Back plate up folding: ≥75°; down folding: ≥30°
• Head plate adjustment: ≥90°
• Kidney bridge adjustment: ≥120 mm
• Electric horizontal sliding: ≥340 mm
• Leg plate outwards: ≥90°
• Top material: radiolucent high-intensity composite panel compatible with C-ARM X-ray
• Body & base: stainless steel (waterproof, dust proof)
• Drive: electro-hydraulic servo with imported magnetic valve and oil pump system
• Optional built-in emergency power supply for automatic charging and operation during power outage
