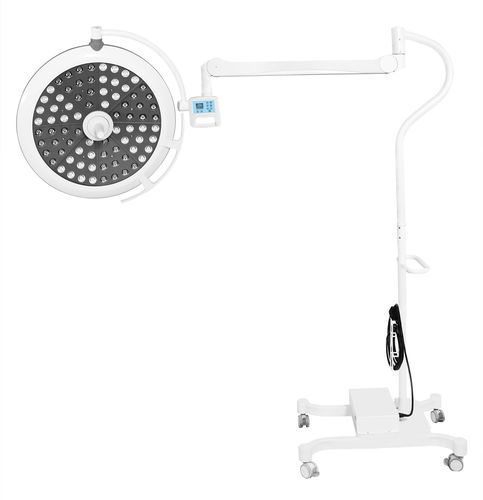

移动式无影灯 FY-LED700S

LED用于手术室97

产品
FY-LED700S 落地移动式 LED 无影手术灯，采用独立光学透镜设计、智能触控操作和手动聚焦，可对手术视野进行精确照明。

主要特点

• 每颗 LED 之上配备独立光学透镜，实现光线均匀汇聚并有效消除阴影
• 特殊光谱可调：R9（红）与 R11（绿）各自 4 级可调，提升血液与软组织颜色还原；Ra >97
• 灯头 360° 无限制旋转，实现多角度灵活定位
• 智能触控屏可设置亮度、色温与光谱参数
• 铝合金灯头，超薄厚度 ≤9.5 cm，便于消毒并适配层流环境
• 中央旋转手柄手动对焦，方便调整光斑尺寸（120–300 mm）
• 术野温升超低 <1°C，可减少伤口脱水与热损伤
• 滚轮移动底座，便于在手术室、门诊与急诊间转移
• 亮度无级调节范围 40,000–160,000 Lux

技术参数（表）
Item: Parameter
Model: FY-LED700S, Mobile Floor Type
Control Mode: Smart Touch Control
Lamp Head Material: Aluminum Alloy
Lamp Head Thickness: ≤9.5cm
Lamp Head Diameter: 700mm
Horizontal Arm Reach: 800+900+700mm
Light Source: LED, Lifespan ≥80,000 hrs
LED Quantity: 80 pcs
Optical Design: Independent optical lens above every single bulb
Special Spectrum: R9 red light 4-step adjustable; R11 green light 4-step adjustable
Lamp Head Rotation: 360° Unlimited Rotation
Brightness: 40,000–160,000 Lux, stepless adjustable
Focus Range: 120~300mm, manual adjustable
Color Temperature: 3700K–5000K, adjustable
Ra Index: >97
Lighting Depth: 500–1800mm
Surgical Field Temp Rise: <1°C
Rated Power: 84W
Input Voltage: AC100-240V 50/60HZ
Warranty: 2 Years

技术规格

• Model: FY-LED700S
• Control Mode: Smart Touch Control
• Lamp Head Material: Aluminum Alloy
• Lamp Head Thickness: ≤9.5cm
• Lamp Head Diameter: 700mm
• Horizontal Arm Reach: 800+900+700mm
• Light Source: LED; Lifespan ≥80,000 hrs
• LED Quantity: 80 pcs
• Optical Design: Independent optical lens above each LED bead
• Special Spectrum: R9 (red) 4-step adjustable; R11 (green) 4-step adjustable
• Lamp Head Rotation: 360° unlimited
• Brightness: 40,000–160,000 Lux (stepless)
• Focus Range: 120–300 mm (manual)
• Color Temperature: 3700K–5000K (adjustable)
• Color Rendering Index (Ra): >97
• Lighting Depth: 500–1800 mm
• Surgical Field Temperature Rise: <1°C
• Rated Power: 84W
• Input Voltage: AC100–240V 50/60Hz
• Warranty: 2 Years
