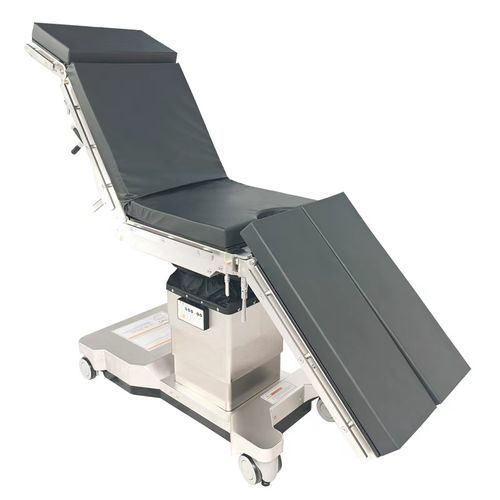

综合手术台 FY600E

放射学电动液压

产品描述
FUYOUMED FY600E 是一款电动液压手术台，适用于常规外科手术与全方位患者定位。支持头脚互换、纵向平移和多角度倾斜，可提升术中操作便捷性并兼容影像需求。
主要功能包括电动液压中央制动、手持控制器与立柱安装控制器、可选无线控制、备用电池以及自动待机功能，保障安全性与运行连续性。
适用于需要透视功能、高承载能力及多样化定位的手术室环境。

技术规格

• Head-to-toe Interchange Function: Yes
• Base Housing Material: 304 stainless steel
• Wheel Brake System: Four hydraulic jack columns
• Table Top Frame Material: 304 stainless steel
• Central Brake: Electric hydraulic
• Overall Length: 2090 mm
• Overall Width: 540 mm
• Maximum Load Capacity: 520 KG
• Safe Working Load (SWL): 265 KG
• Main Body Material: 304 stainless steel
• Height Adjustment (without Mattress): 540-1040 mm
• Trendelenburg / Reverse Trendelenburg: 30°
• Lateral Tilt: 20°
• Longitudinal Translation: 320 mm (Optional 350 mm)
• Mattress / Pad Thickness: 80 mm
• Handheld Controller: Yes
• Controller Display (2.4-inch): LCD Option Selection
• Column-mounted Controller: Yes
• Wireless Controller: Optional (2.4-inch / 3.5-inch)
• Foot Switch: Optional
• Auto Standby: Yes (automatic shutdown in 70 seconds)
• Flexion / Reflexion Buttons: 220° / 110°
• Zero-Position Reset Button: Yes
• Interchangeable Head/Leg Plate: Yes
• Position Memory Function: 5 presets
• Side Rail (Rail Size): Majestic 28.5*9.5
• Maximum Radiolucent Area: 1590 mm
• Head Plate Control Type: Gears and air springs
• Head Plate Up/Down Angle: +60° - 90°
• Back Plate Control Type: Electric hydraulic
• Back Plate: 1 section
• Back Plate Up/Down Angle: +80° - 40°
• Kidney Bridge: Not available
• Leg Plate Control Type: Manual air spring adjustment
• Leg Plate Up/Down Angle: 30° / -90° / 180°
• Power Supply: AC 110-220 V
• Backup Battery: 24V 15AH
• Safety Feature: One-click reset
• Reverse V / Forward V Position: Yes
• Dual-layer Table Top: Optional
• Caster Diameter: 4 × 100 mm
• Casters: 4 universal casters (with rotation & directional lock)
• Manual Emergency Drive: Optional
• Packing Dimensions: 140 × 73 × 115 cm
• Gross Weight: 350 kg (including accessories)
