旋转粘度计 CBC ROTAVISC lo-vi Package

实验室

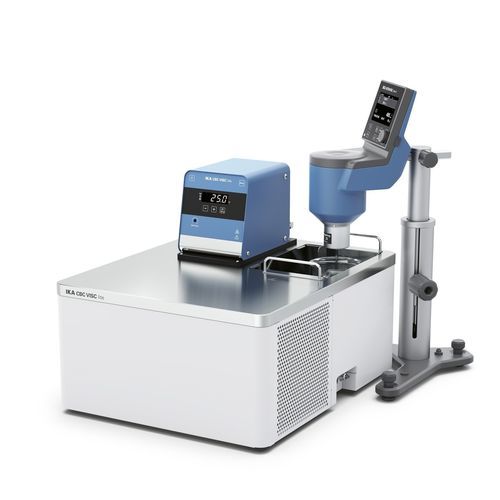

Overview The viscosity of most liquids depends on the temperature. To obtain reliable measurement results, accurate temperature control is crucial. The CBC ROTAVISC lo-vi Package is the ready-to-connect solution for precise viscosity measurement of temperature-dependent samples in the laboratory. The package combines the ROTAVISC lo-vi rotational viscometer with the CBC VISC lite heating and cooling bath circulator. The sample is measured directly in the heating bath under controlled conditions. ROTAVISC lo-vi is a high-performance rotational viscometer with a measuring range from 1 - 6,000,000 mPas. The CBC VISC lite heating and cooling bath circulator was developed for use with IKA viscometers and covers a temperature range from -25 °C to 125 °C. The bath offers space for two standard beakers (600 ml), allowing a second sample to be pre-tempered during measurement. The CBC VISC lite is equipped with the natural refrigerant R290 and is designed as a sustainable, environmentally friendly alternative.

Your benefits

• Save time: A second beaker (600 ml) can be pre-tempered during the measurement.
• Perfect results: Optimized water flow management in the insulated bath for fast and precise temperature control.
• Improved ecological footprint: Equipped with the environmentally friendly natural refrigerant R290.
• Flexible application: External pump connection allows use for heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakers.
• Easy to maintain: Easily removable and cleanable air filter guarantees optimum performance.
• Perfect compatibility and automation: ROTAVISC and CBC VISC lite are compatible with the labworldsoft® laboratory software for easy automation, control and documentation of measurement results.

Scope of delivery

• ROTAVISC lo-vi control S000
• ROTASTAND
• CBC VISC lite
• SP set-1
• PT 100.8

Caractéristiques / spécifications techniques

• Measuring principle: Rotational viscometer
• Measuring range (ROTAVISC lo-vi): 1 - 6,000,000 mPas
• Temperature range (CBC VISC lite): -25 °C to 125 °C
• Bath capacity: Space for two standard beakers (600 ml)
• Refrigerant: Natural refrigerant R290
• Compatibility: Compatible with labworldsoft® laboratory software for automation, control and documentation
• External pump connection: Enables heating of standard vessels according to DIN with ELVAS spindles or double-walled beakers
• Maintenance: Removable and cleanable air filter
• Measurement mode: Sample measured directly in heating bath under controlled conditions
• Included components: ROTAVISC lo-vi control S000, ROTASTAND, CBC VISC lite, SP set-1, PT 100.8
• Ident. No. / SKU: 0010014047
