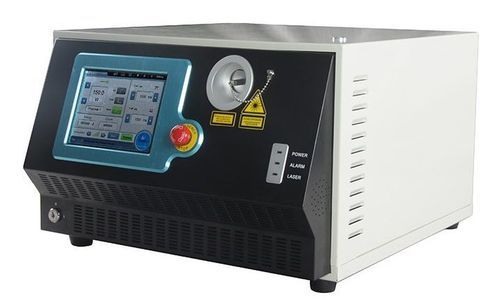

泌尿外科手术激光仪 HPLASⅡGaAlAs二极管台面式
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 应用
- 用于泌尿外科手术
- 放大介质
- 二极管, GaAlAs
- 人体工学
- 台面式
- 脉冲持续时间
- 连续
- 波长(nm)
980 nm, 1,470 nm
产品介绍
Overview
GIGAALASER combines two parallel working wavelengths of 980nm and 1470nm to produce the HPLASⅡ for urology. HPLASⅡ operates dual wavelengths (980nm and 1470nm) running in parallel with a maximum output up to 200W, achieving optimized absorption in water and hemoglobin which allows a high ablation rate together with good hemostatic (blood-staunching) effect. The dual laser design can spare internal structures related to ejaculation, aiming to reduce the risk of retrograde ejaculation in selected patients. The excellent hemostatic profile minimizes blood loss during and after the procedure and supports improved healing and symptomatic relief for patients with BPH.
Advantages
Principle of treatment
The treatment is performed by inserting a cystoscope containing the new BPH probe through the urethra. The head of the bare fiber is extended from the probe and the dual laser (980nm + 1470nm) is emitted from the probe head. The operator steers and rotates the probe to ablate tissue in a circular motion, progressively enlarging the funnel; the probe is withdrawn at the end of ablation to restore normal urine flow.
Technical Specifications (table)
Laser Type: GaAlAs Diode Laser
Model: HPLAS
Wavelength: 980nm+1470nm
Maximum Power: 150W+40W
Operation Mode: Continuous and pulsed
Pulse Duration: 100ms-1s
Repetition Rate: 0.5Hz-50Hz
Transmission System: 600μm~1000μm side-fire fiber or bare fiber with SMA 905 connector available, no limit
Pilot Beam: Red Diode Laser of 635nm, Power <5mW
Control Mode: True Color Touch Screen
Voltage/Current Rating: 110/220 VAC, 5A, 50/60 Hz
Dimensions: 545(W)*540(L)*300(H) mm
Weight: 38Kg
Safety Compliance: IEC
Specifications subject to change without notice.
Caractéristiques / spécifications techniques
GIGAALASER combines two parallel working wavelengths of 980nm and 1470nm to produce the HPLASⅡ for urology. HPLASⅡ operates dual wavelengths (980nm and 1470nm) running in parallel with a maximum output up to 200W, achieving optimized absorption in water and hemoglobin which allows a high ablation rate together with good hemostatic (blood-staunching) effect. The dual laser design can spare internal structures related to ejaculation, aiming to reduce the risk of retrograde ejaculation in selected patients. The excellent hemostatic profile minimizes blood loss during and after the procedure and supports improved healing and symptomatic relief for patients with BPH.
Advantages
- Dual parallel working wavelengths of 980nm and 1470nm
- New BPH probe with bare fibers contacts tissue where needed, enabling an extremely high degree of ablation
- Optional side-fire fiber available
- 12 inch color touch screen and user-friendly interface
Principle of treatment
The treatment is performed by inserting a cystoscope containing the new BPH probe through the urethra. The head of the bare fiber is extended from the probe and the dual laser (980nm + 1470nm) is emitted from the probe head. The operator steers and rotates the probe to ablate tissue in a circular motion, progressively enlarging the funnel; the probe is withdrawn at the end of ablation to restore normal urine flow.
Technical Specifications (table)
Laser Type: GaAlAs Diode Laser
Model: HPLAS
Wavelength: 980nm+1470nm
Maximum Power: 150W+40W
Operation Mode: Continuous and pulsed
Pulse Duration: 100ms-1s
Repetition Rate: 0.5Hz-50Hz
Transmission System: 600μm~1000μm side-fire fiber or bare fiber with SMA 905 connector available, no limit
Pilot Beam: Red Diode Laser of 635nm, Power <5mW
Control Mode: True Color Touch Screen
Voltage/Current Rating: 110/220 VAC, 5A, 50/60 Hz
Dimensions: 545(W)*540(L)*300(H) mm
Weight: 38Kg
Safety Compliance: IEC
Specifications subject to change without notice.
Caractéristiques / spécifications techniques
- Laser Type: GaAlAs Diode Laser
- Modèle: HPLAS / HPLASⅡ
- Longueurs d'onde: 980nm et 1470nm (dual)
- Puissance maximale: 150W + 40W
- Modes d'opération: continu et pulsé
- Durée d'impulsion: 100 ms - 1 s
- Taux de répétition: 0,5 Hz - 50 Hz
- Système de transmission: fibres side-fire 600μm~1000μm ou fibre nue avec connecteur SMA 905
- Faisceau pilote: diode rouge 635 nm, puissance <5 mW
- Interface: écran tactile couleur 12 pouces
- Alimentation: 110/220 VAC, 5A, 50/60 Hz
- Dimensions: 545 x 540 x 300 mm
- Poids: 38 kg
- Conformité sécurité: IEC
