手术激光仪 Gbox

二极管台面式

Présentation

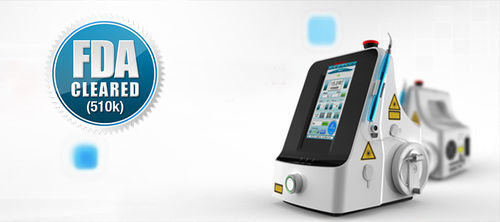

The new Gbox portable surgery diode laser system from GIGAAMEDICAL is a compact, portable medical diode laser platform designed for surgical, aesthetic, therapeutic and veterinary applications. Small-size body case with maximum power up to 30W. Available wavelength options include 450nm, 532nm, 810nm, 980nm, 1064nm, 1470nm and 1940nm. Can operate in continuous and pulsed modes and accepts both contact and non-contact handpieces.

Applications cliniques

• Dentistry
• Endovenous laser treatment (EVLT)
• ENT (ear, nose, throat)
• PLDD (percutaneous laser disc decompression)
• Lipolysis / laser-assisted liposuction
• DEEP Tissue Therapy
• Veterinary procedures

Accessoires et options
Comprehensive range of accessories supplied as standard or optional to extend clinical functionality: flexible fibers, multiple handpieces of various shapes and lengths, fiber holders, micro-endoscope, therapy handpieces (e.g., PM3), ENT handpiece set, lipolysis handpiece with multiple cannula lengths. Fiber lengths commonly supplied: 3 meters (sterilisable by user).

Points forts / fonctionnalités

• User-friendly interface with advanced software and preset protocols; operator can rename, customize parameters and save protocols.
• Built-in power meter and software power calibration at the fiber end; output power calibration at the end of fiber.
• Adjustable aiming (pilot) beam, background light and sound controls.
• 20 KHz top-pulsation for fast, tissue-protecting performance.
• High quality and reliability: 8-inch touch screen display, highly integrated modular design for easy maintenance and low cost.
• Full set of clinical accessories included to allow immediate use by end user.
• Portable metal carry case with coded lock for easy transport.
• Reliable after-sale service and distributor training (service information only; no contact details included).

Design compact et portabilité
Mini size body case with peak output up to 30W. Dimensions (nominal): 245 mm (L) × 215 mm (W) × 315 mm (H). Weight: approx. 5 kg. Portable carry case supplied. Fiber holders (two kinds) facilitate cleaning and convenient use.

Accessoires cliniques — exemples

• PM3 therapy handpiece — for pain relief, accelerate healing and decrease inflammation (therapy application).
• ENT handpiece set — includes 7 ENT handpieces for various ENT applications.
• Lipolysis handpiece — includes 5 lengths of cannula; cannula re-sterilisable up to ~40 times each.

Informations règlementaires
Manufacturer indicates laser systems have FDA approval (statement of approval on product page).

Caractéristiques / spécifications techniques

• Model family: Gbox
• Maximum peak output power: up to 30 W
• Available wavelengths: 450 nm, 532 nm, 810 nm, 980 nm, 1064 nm, 1470 nm, 1940 nm
• Operating modes: continuous wave and pulsed
• Aiming beam: adjustable pilot light
• Pulsation: up to 20 KHz top-pulsation
• Control/display: 8-inch touch screen
• Calibration: built-in power meter and output power calibration at fiber end (software-supported)
• Fiber: flexible fiber options; standard length 3 m (user-sterilisable)
• Handpieces: multiple surgical, ENT, lipolysis and therapy handpieces (including ENT set of 7, PM3 therapy handpiece)
• Dimensions (approx.): 245 × 215 × 315 mm
• Weight (approx.): 5 kg (system only)
• Packaging: metal portable carry case with coded lock
• Accessories: full standard clinical accessories supplied (fiber holders, fibers, handpieces, micro-endoscope, etc.)
• Regulatory note: manufacturer reports FDA approval for the laser systems
