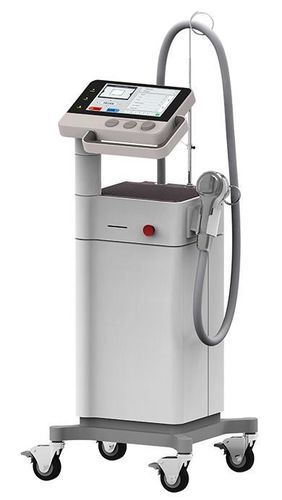

医疗美容激光仪 BeautyScan™Er:玻璃推车式
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 应用
- 医疗美容
- 放大介质
- Er:玻璃
- 人体工学
- 推车式
- 波长(nm)
1,550 nm
产品介绍
Présentation
The BeautyScan™ is a high-end fractional non-ablative skin resurfacing laser system using a 1550nm fiber Er-Glass laser module. It is designed for non-invasive treatment of scars, stretch marks and wrinkles by delivering laser energy to create microthermal zones that stimulate the body’s wound healing response and new collagen production.
Fonctionnement
The BeautyScan™ transmits 1550nm laser energy into the skin to produce thousands of tiny microthermal zones, creating microscopic columns of thermal injury that refresh the epidermis and stimulate collagen remodeling.
Clinical Applications
Features
Avantages opérationnels
Stable: adopts 1550nm fiber Er-Glass laser module technology to provide stable wavelength, uniform spot size and accurate performance during treatment.
Excellent ease of use: user friendly software and intelligent design assist user to choose optimal treatment settings.
Flexibility and versatility: diversified scanning modes and spot size meet different treatment needs.
Cost effective: no costly consumable, no costly maintenance.
Desktop / Options
Desktop optional available.
caractéristiques / spécifications techniques
The BeautyScan™ is a high-end fractional non-ablative skin resurfacing laser system using a 1550nm fiber Er-Glass laser module. It is designed for non-invasive treatment of scars, stretch marks and wrinkles by delivering laser energy to create microthermal zones that stimulate the body’s wound healing response and new collagen production.
Fonctionnement
The BeautyScan™ transmits 1550nm laser energy into the skin to produce thousands of tiny microthermal zones, creating microscopic columns of thermal injury that refresh the epidermis and stimulate collagen remodeling.
Clinical Applications
- Acne scars
- Stretch marks
- Other scars (burn, surgical and other scars)
- Wrinkle removal
- Aging wrinkles
- Rough skin
- Coarse pore
Features
- Non-ablative, painless and bloodless solution
- Targeted treatment without side effects
- Short treatment times and quick recovery time
- Comfort and excellent patient satisfaction reported
Avantages opérationnels
Stable: adopts 1550nm fiber Er-Glass laser module technology to provide stable wavelength, uniform spot size and accurate performance during treatment.
Excellent ease of use: user friendly software and intelligent design assist user to choose optimal treatment settings.
Flexibility and versatility: diversified scanning modes and spot size meet different treatment needs.
Cost effective: no costly consumable, no costly maintenance.
Desktop / Options
Desktop optional available.
caractéristiques / spécifications techniques
- Laser type: Fiber Er-Glass laser
- Wavelength: 1550nm ±1nm
- Output power: 1-10W
- Operation mode: Fractional
- Figure filling: 9% – 100%
- Treatment Surface Area: 1mm - 16mm Adjustable
- Spot Size: 100um
- Pulse width: Ton: 1ms-50ms; Toff: 1ms-5000ms
- Pulse repetition rate: 0Hz – 500Hz
- Application systems: Scanner
- Transmission system: fibers and collimator
- Aiming beam: Diode laser 635nm, power < 5mW, adjustable brightness
- Operation interface: 10.2" Color LCD touch screen
- Laser Class: 4
- Safety classification: Class I Type B
- Cooling: Air
- Dimensions: 400(W) * 400(L) * 950(H) mm
- Weight: 35kg
- Waterproof level: IPX1
- Footswitch Waterproof level: IPX8
- Safety Compliance: IEC
