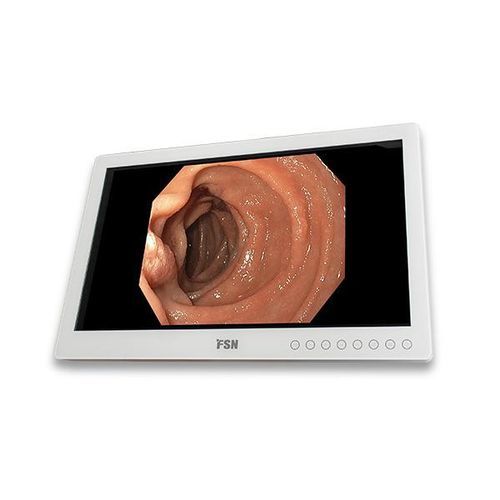

医用显示器 FS-E2102D

手术手术室诊断

产品概述
FSN Medical Technologies的显示器针对手术室、急诊室和操作室使用的外科及诊断系统进行设计。21.5英寸全高清型号FS-E2102D占用空间小，适用于空间受限但需满足临床图像要求的场所。

最新技术
FS-E2102D支持快速视频信号检测、图像平移、缩放、冻结、画中画（PIP）、画并画（PBP）及三窗口布局，并采用适合无菌区的无风扇外壳。支持DisplayPort和HDMI输入。平齐前面滤镜便于清洁和灭菌。支持用户预设以便一致的图像调用。

用户友好
直观的屏显菜单可快速调整图像与布局设置。多模态选项允许临床人员同时查看多幅图像。圆角机壳可降低意外碰撞造成的伤害风险。轻量化设计适合于吊臂或弹簧臂安装。

特点

• 更多屏幕窗口布局可选。
• 角部保护以提高手术室安全性。
• 为5V和12V附件提供电源输出。
• 兼容无菌区工作流程的无风扇外壳。

规格（表）
Panel: 21.5 inch TFT LCD (LED)
Resolution: 1920 x 1080 pixels
Aspect Ratio: 16 : 9
Active Area: 476.06(H)mm x 267.79(V)mm
Pixel Pitch (mm): 0.2479 x 0.2479
Response Time (typical): 22 ms (rise and fall)
Number of Colors: 16.7 million
Brightness: (typical) 350 cd/m2
Gamut: BT.709 calibrated
Contrast Ratio: (typical) 1000 : 1
Surface Treatment: Anti-reflection, anti-fingerprint
Viewing Angle: (CR>10) R/L 178°, U/D 178°
Input Signal: 2 x HDMI (1.4) 1 x DP (1.2)
Output Signal: 1 x HDMI (1.4)
Power Supply: AC/DC Adaptor (AC 100~240V, DC 12V 5A)
Power Consumption: 45W max
Latency (typical): 2 ms max
Unit Dimension: 527.9(W) x 334.5(H) x 58.9(D) mm (20.78 x 13.17 x 2.32 inch)
Package Dimension: 667(W) x 580(H) x 163(D) mm (26.26 x 22.83 x 6.41 inch)
IP Rating: IP33 - overall
Weight: 5.48 kg (monitor) / 8.45 kg (shipping package)
Certifications: ANSI/AAMI ES60601-1(UL60601-1), CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device

技术规格

• Panel: 21.5 inch TFT LCD (LED)
• Resolution: 1920 x 1080 pixels
• Aspect Ratio: 16 : 9
• Active Area: 476.06(H)mm x 267.79(V)mm
• Pixel Pitch: 0.2479 x 0.2479 mm
• Response Time (typical): 22 ms (rise and fall)
• Number of Colors: 16.7 million
• Brightness (typical): 350 cd/m2
• Gamut: BT.709 calibrated
• Contrast Ratio (typical): 1000 : 1
• Surface Treatment: Anti-reflection, anti-fingerprint
• Viewing Angle: R/L 178°, U/D 178° (CR>10)
• Input Signal: 2 x HDMI (1.4), 1 x DisplayPort (1.2)
• Output Signal: 1 x HDMI (1.4)
• Power Supply: AC 100~240V via AC/DC adaptor, DC 12V 5A
• Power Consumption: 45W max
• Latency (typical): 2 ms max
• Unit Dimension: 527.9 x 334.5 x 58.9 mm
• Package Dimension: 667 x 580 x 163 mm
• IP Rating: IP33 overall
• Weight: 5.48 kg (monitor)
• Certifications: ANSI/AAMI ES60601-1, CAN/CSA C22.2 No. 60601-1, FCC Class B, EN60601-1, EN60601-1-2, CE, MDR(EU) 2017/745 Class I Medical Device
