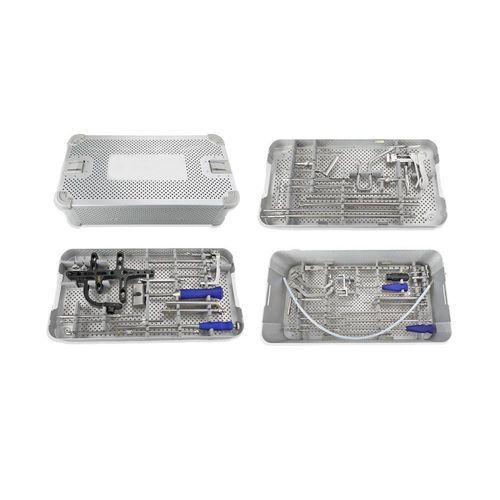

肱骨骨折器械套件 创伤可定制
添加到我的收藏夹
添加到产品对比表
产品规格型号
- 操作
- 创伤, 用于肱骨骨折
- 选项
- 可定制
产品介绍
概述
该肱骨髓内钉多功能器械套装用于肱骨的髓内固定。套件支持多种肱骨钉连接规格，可选配适配的连接尺寸。组件可根据不同钉型和手术流程进行定制组合。
套件清单
特性 / 技术规格
该肱骨髓内钉多功能器械套装用于肱骨的髓内固定。套件支持多种肱骨钉连接规格，可选配适配的连接尺寸。组件可根据不同钉型和手术流程进行定制组合。
套件清单
- 1 | 8860.1608 | Measure Ruler φ7-φ9.5×160-300
- 2 | 8611.5128 | Guide Wire φ1.5×150
- 3 | 8612.5148 | Guide Wire with Stopper φ2.5×200
- 4 | 8612.5118 | Guide Wire φ2.5×250
- 5 | 8860.2968 | Protecting Sleeve φ11.5×70
- 6 | 8110.8028 | Quick Coupling Adaptor φ8
- 7 | 8110.8018 | Quick Coupling Handle φ8
- 8 | 8212.6108 | Cannulated Trephine φ10
- 9 | 8860.5188 | Cannulated Awl φ3.5-φ10
- 10 | 8861.4518 | Wire Guide
- 11 | 8861.5128 | Wire Pusher
- 12 | 8972.6048 | Krischner Wire with Trocar Tip φ2.5-φ3.45-680
- 13 | 8971.9848 | Depth Gauge for Guide Wire with Ball Tip (L=680)
- 14 | 8988.0708 | Flexible Reamer Shaft φ7-φ2.5×420
- 15 | 8988.0728 | Flexible Reamer Shaft φ8-φ2.5×420
- 16 | 8988.0748 | Flexible Reamer Shaft φ9-φ2.5×420
- 17 | 8988.0768 | Flexible Reamer Shaft φ10-φ2.5×420
- 18 | 8992.3018 | Handle
- 19 | 8992.3028 | Connecting Blot M6-φ3.45-SW11
- 20 | 8860.7158 | Wrench SW11
- 21 | 8992.3168 | Hammer Guide M6-φ2.5-SW11
- 22 | 8860.8408 | Sliding Hammer
- 23 | 8992.3048 | Proximal Guide Bar
- 24 | 8861.0478 | Connecting Screw M6-SW5
- 25 | 8866.0128 | Positioning Rod Sleeve φ13-φ10×150
- 26 | 8866.0428 | Positioning Rod Drill Sleeve φ10-φ3.8×162
- 27 | 8866.0348 | Pin Sleeve φ3.8
- 28 | 8013.8218 | Drill Bit φ3.8×270
- 29 | 8223.3818 | Protector φ3.8
- 30 | 8861.3918 | Depth Gauge
- 31 | 8231.9328 | Countersink Drill φ8
- 32 | 8992.3278 | Screwdriver
- 33 | 8992.3288 | Locking Screw Positioning Drill Sleeve φ10-φ5.8
- 34 | 8992.3308 | Locking Screw Drill Sleeve φ5.8-φ2.8×62
- 35 | 8012.8138 | Drill Bit φ2.8×200
- 36 | 8223.2818 | Protector φ2.8
- 37 | 8121.2168 | Torque-limiting Screwdriver T15-1.5N.m
- 38 | 8369.7658 | Screwdriver T15
- 39 | 8866.0118 | Locking Screw Guide φ11-φ8.2×175
- 40 | 8866.0418 | Drill Sleeve φ8.2-φ3×187
- 41 | 8866.0338 | Pin Sleeve φ3.0
- 42 | 8013.0168 | Drill Bit φ3.0×300
- 43 | 8220.3028 | Protector φ3.0-SW3
- 44 | 8371.3008 | Wrench SW3.0
- 45 | 8861.3928 | Depth Gauge
- 46 | 8378.3538 | Screwdriver SW3.5 (quick change)
- 47 | 8379.3668 | Screwdriver SW3.5
- 48 | 8992.3068 | Distal Anterior Guide Bar
- 49 | 8992.3038 | Compress Blot M6-φ3.0-SW1
- 50 | 8992.3128 | Diatal Guide Bar
- 51 | 8013.8228 | Drill Bit, Flat Tip φ3.8
- 52 | 8992.3148 | Positioning Rod
- 53 | 8992.3138 | Locking Block
- 54 | 8992.3108 | Distal Target Device (left)
- 55 | 8992.3118 | Distal Target Device (right)
- 56 | 8861.0808 | Locking Blot M6-SW5
- 57 | 8371.5008 | Wrench SW5
- 58 | 8992.3158 | Positioning Rod
- 59 | 8992.3178 | Gauge for End Cap
- 60 | 8226.3518 | Compress Screw Holder SW3.5
- 61 | 8992.3188 | Extractor Rod
- 62 | | Instrument Box
特性 / 技术规格
- 品牌: Centrau Medical Instrument
- 产品: 多功能肱骨髓内钉器械套装
- 适用: 用于肱骨钉; 兼容多种肱骨钉设计; 连接尺寸可调
- 可定制: 握柄与器械盒的材质和形状可按客户要求定制
- 材料: 采用外科级高质量材料制造
- 认证: CE 与 FDA（厂家声明）
- 包含: 完整62件套，包括测量尺、多种导丝（含止动与不含止动）、保护套、快速联接组件、套管器械、φ7–φ10柔性扩髓轴、深度规、钻套/钻头、包括力矩限制型在内的螺丝刀、定位与目标装置、抽出杆及器械盒
- 组件数量: 62（详见上文）
