Overview
The Nordlys® platform is a multi-application IPL and laser system for dermatologic and aesthetic treatments. It integrates Selective Waveband Technology (SWT®) narrowband IPL with two non-ablative fractional lasers (1550 nm and 1940 nm) and an Nd:YAG 1064 nm laser to treat pigmentation, vascular lesions, skin resurfacing, and hair removal. The Nordlys Mini is a stand-alone non-ablative fractional laser device with the same 1550 nm and 1940 nm lasers for minimally invasive resurfacing and benign pigmented lesions.

Key Technologies

• SWT® (Selective Waveband Technology) narrowband IPL
• 1550 nm non-ablative fractional laser (deep resurfacing)
• 1940 nm non-ablative fractional laser (epidermal resurfacing and benign pigmented lesions)
• Nd:YAG 1064 nm laser (vascular lesions, leg veins, port wine stains, onychomycosis, warts)

Why choose Nordlys

• Multi-application platform expands practice offerings (pigment, vascular, resurfacing, hair removal)
• Applicable across Fitzpatrick Skin Types I–VI depending on applicator selection
• High ROI non-ablative fractional resurfacing with low downtime
• Customizable treatments with purchasable handpieces to extend capabilities over time
• Pre-set dermatologic and aesthetic treatment protocols developed from long-term clinical use

Technology Details

• SWT® IPL: dual light filters and sub-millisecond pulses; narrowband filtering removes harmful wavelengths above 950 nm for safer vascular and pigment treatments and hair removal
• 1550 nm: non-ablative fractional for deeper dermal remodeling; used for acne scars, surgical scars, striae, and textural irregularities; available on Nordlys and Nordlys Mini
• 1940 nm: epidermal fractional resurfacing for shallow resurfacing and benign pigmented lesions (reaches epidermis and superficial dermis, up to ~200 µm); available on Nordlys and Nordlys Mini
• Nd:YAG 1064 nm: treats leg vessels (0.1–3 mm), facial telangiectasias, venous lakes, port wine stains, benign cutaneous lesions (warts), and onychomycosis

Applications (selected)
1550 (Nordlys & Nordlys Mini)

• Skin resurfacing
• Coagulation of soft tissue
• Acne scars, surgical scars, striae, textural irregularities

1940 (Nordlys & Nordlys Mini)

• Skin resurfacing via coagulation of soft tissue
• Benign pigmented lesions (lentigines, sunspots, freckles) for Fitzpatrick I–IV
• Actinic keratosis (listed in certain clearances)

Nd:YAG 1064

• Leg vessels
• Benign vascular lesions
• Port wine stains
• Venous lakes
• Onychomycosis (clear nail)
• Warts and other benign cutaneous lesions

SWT IPL Filters / Applicator Options

• PR 530 / PRS 530 / VL 555 / VLS 555: photorejuvenation, rosacea, telangiectasias, poikiloderma, inflammatory acne (PR 530)
• PL 400: benign epidermal pigmented lesions (e.g., solar lentigines)
• HR 600 / HRL 600 / HRD 645: permanent hair reduction

Applicators & Handpiece Features

• Nd:YAG applicator available with 3 tip geometries: circular, semi-circular, and circular sapphire for feeder vessel isolation
• Integrated SoftCool™ technology to enable treatments without constricting underlying vessels
• Software-controlled zoom for adjustable spot sizes (1.5–5.0 mm) for the Nd:YAG applicator
• Applicator cables designed to be flexible to reduce repetitive strain

Performance & Usability

• User interface offers two modes: Guided (clinical guidance) and Expert (customization)
• Adjustable arm for screen and tray positioning; accessories tray for convenience
• Whisper-quiet operation for patient comfort and clear view of treatment area
• Secure Wi‑Fi–enabled remote assistance, diagnostics, and software updates
• Patient database to build records and review treatment history

Models

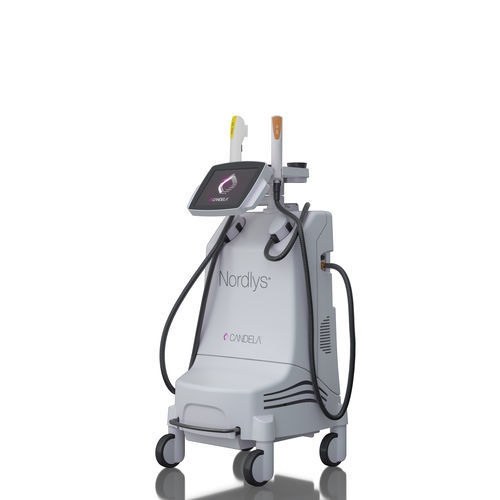

• Nordlys® — multi-application device with SWT IPL, 1550 nm, 1940 nm, and Nd:YAG 1064 nm
• Nordlys Mini™ — non-ablative fractional laser device with 1550 nm and 1940 nm applicators (low downtime, high ROI)

Certifications / Clearances

• FDA cleared (Nordlys 510(k) K212492, Dec 2021)
• CE and Health Canada cleared (Health Canada Medical Device Licence 108788, Jan 2023)
• TGA cleared

How it works

• Targeted light pulses deliver energy absorbed by chromophores: melanin (hair removal), hemoglobin (vascular lesions), or water/other chromophores (resurfacing)
• Absorbed light converts to heat to coagulate or ablate target structures while sparing surrounding tissue via fractional delivery and narrowband filtering

Clinical & Practice Benefits

• Broad treatment portfolio supports expanding practice services and patient base
• Non-ablative options enable faster recovery and multiple treatment indications with shared platform investment
• Modular handpieces allow phased investment in additional treatment capabilities

Caractéristiques / spécifications techniques

• Technologies: SWT® narrowband IPL; 1550 nm NAFL; 1940 nm NAFL; Nd:YAG 1064 nm
• 1550 nm: deep non-ablative fractional resurfacing; SoftCool™ for comfort
• 1940 nm: epidermal fractional resurfacing; targets benign pigmented lesions (epidermis & superficial dermis ~200 µm)
• Nd:YAG 1064: vascular and cutaneous lesion treatments; tip geometries for varied vessel geometries
• Nd:YAG spot size: software-controlled zoom from ~1.5 mm to 5.0 mm
• Applicators: SWT IPL applicators with water filtration and narrowband filters (PL 400, PR 530/PRS 530, VL 555/VLS 555, HR 600 variants)
• User modes: Guided and Expert
• Connectivity: Secure Wi‑Fi remote assistance and diagnostic support
• Intended settings: medical spas, dermatology clinics, laser & cosmetology centers
• Regulatory clearances: FDA, CE, Health Canada, TGA (as noted)
