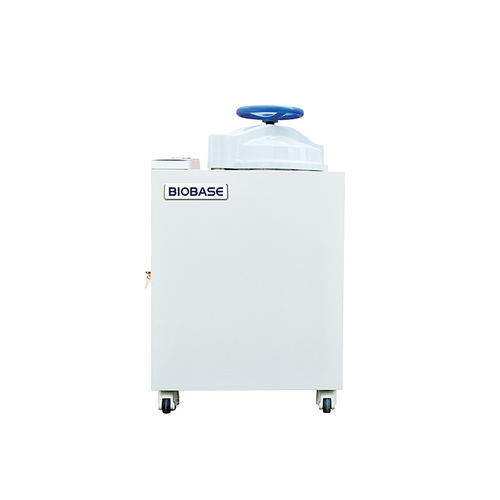

实验室医用灭菌器 BKQ-B series

用于消毒CSSD中央灭菌服务

Présentation
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply
Model: BKQ-B50BL BKQ-B75BL BKQ-B100BL BKQ-B120BL

Applications
Biosafety autoclave is suitable for the sterilization of materials, instruments, utensils, culture media and wastes for the purpose of biosafety, in order to prevent the spread of pathogenic factors through aerosols to people, animals and plants or the environment pollution.

Features

• True color touch control panel with clear display and easy operation.
• With waste water collection and waste gas filtration system, it can ensure the sterility of waste water and waste gas finally discharged.
• The equipment occupies a small space and has a large cavity volume.
• Footmaster casters, easy to move the equipment.
• With a quick service window, electrical equipment can be serviced without removing the cover.
• The machine has a built-in independent steam generator.
• Self-expanding silicone sealing ring, with good sealing effect and long service life, is made of medical transparent silicone molding.
• Using single chip control, water injection, heating, sterilization, exhaust, collection, filtration, automatic control, no manual operation.
• Built-in printer, which can print sterilization data in real time.
• Deionized water connection for supplying the steam generator.
• It is equipped with liquid program, medium program and solid program.
• With an emergency stop button.

Technical Parameters (table)
Model | BKQ-B50BL | BKQ-B75BL | BKQ-B100BL | BKQ-B120BL
Capacity | 50L | 75L | 100L | 120L
Designed Pressure | 0.28MPa | 0.28MPa | 0.28MPa | 0.28MPa
Working Pressure | 0.23MPa | 0.23MPa | 0.23MPa | 0.23MPa
Designed Temp. | 150℃ | 150℃ | 150℃ | 150℃
Working Temp. | 134℃ | 134℃ | 134℃ | 134℃
Temp. Precision | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃
Chamber Material | S30408 | S30408 | S30408 | S30408
Chamber Size | φ386*515mm | φ386*695mm | φ386*875mm | φ386*1055mm
Basket | φ365*360mm, 1pc | φ365*265mm, 2pcs | φ365*360mm, 2pcs | φ365*360mm, 1pc; φ365*265mm, 2pcs
Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB
Altitude | ≤2700m (please note when ordering between 1000~2700m) | | |
Standard Accessories | Printer, basket | Printer, basket | Printer, basket | Printer, basket
Consumption | 4KW | 4KW | 4KW | 4KW
Power Supply | AC220V, 50/60Hz | AC220V, 50/60Hz | AC220V, 50/60Hz | AC220V, 50/60Hz
External Size (W*D*H) | 700*610*1070mm | 700*610*1070mm | 700*610*1250mm | 700*610*1430mm
Net Weight | 118kg | 122kg | 130kg | 158kg
Packing Size (W*D*H) | 760*670*1255mm | 760*670*1255mm | 760*670*1435mm | 760*670*1615mm
Gross Weight | 134kg | 138kg | 148kg | 176kg

Caractéristiques / Spécifications techniques

• Modèles : BKQ-B50BL, BKQ-B75BL, BKQ-B100BL, BKQ-B120BL (BKQ-B series)
• Capacités : 50L / 75L / 100L / 120L
• Pression nominale : 0.28MPa
• Pression de fonctionnement : 0.23MPa
• Température nominale : 150℃
• Température de fonctionnement : 134℃
• Précision de température : 0.1℃
• Matériau de la cuve : S30408
• Dimensions de la cuve : φ386*515mm / φ386*695mm / φ386*875mm / φ386*1055mm
• Accessoires standard : imprimante, panier(s)
• Consommation électrique : 4KW
• Alimentation : AC220V, 50/60Hz
• Taille extérieure (W*D*H) : voir tableau selon modèle
• Poids net / brut et taille d'emballage : voir tableau selon modèle
• Niveau sonore : ≤65dB
• Altitude d'utilisation : ≤2700m (indiquer si entre 1000~2700m lors de la commande)
