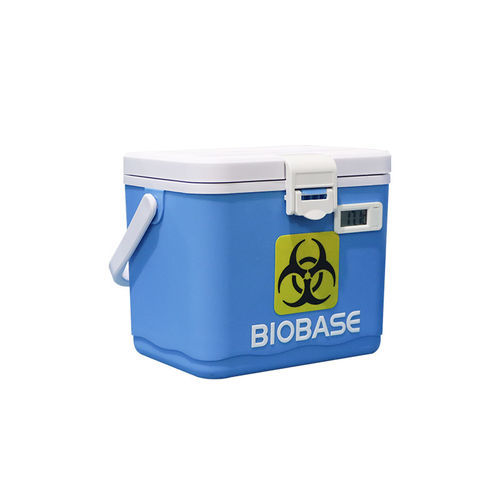

运输样本罐 BTB-L series

用于热敏产品冷链生化危害

Overview
Brand: BIOBASE
Product origin: CHINA
Delivery time: Within 7 days
Supply capacity: Factory Direct Supply

Models

• BTB-L5
• BTB-L6
• BTB-L8
• BTB-L12
• BTB-L15
• BTB-L20
• BTB-L33
• BTB-L55
• BTB-L65
• BTB-L85

Application
It can be used for the transportation of biological products requiring physical insulation, such as UN2814, UN2900, UN3373 biological samples, pathogenic microorganism (virus) species, blood, etc.

Technical Parameters — BTB-L5 / BTB-L6 / BTB-L8 / BTB-L12 / BTB-L15
Model: BTB-L5 | BTB-L6 | BTB-L8 | BTB-L12 | BTB-L15
Capacity: 5L | 6L | 8L | 12L | 15L
Internal & External Materials: PP+PE (all models)
Insulation Material: PU (all models)
Temp. Resolution: 0.1℃ (all models)
Manufacturing Process: Blow molding + injection molding, burr-free surface (all models)
Cooling Source Material: Sodium polyacrylate (all models)
Cooling Retention Time: Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C (all models)
Sponge Test Tube Holder: Standard: 20 holes, compatible with 10ml test tubes; Optional: 11 holes, compatible with 20ml test tubes
Configuration (per model):
BTB-L5: Box*1, phase-change ice box (250ml)*2, absorbent cotton*1, digital thermometer*1, sponge test tube holder*1, 95KPa biosafety transport tank*1
BTB-L6: Box*1, phase-change ice box (400ml)*4, absorbent cotton*1, shoulder strap*1, digital thermometer*1, sponge test tube holder*1
BTB-L8: Box*1, phase-change ice box (400ml)*4, absorbent cotton*2, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2
BTB-L12: Box*1, phase-change ice box (400ml)*6, absorbent cotton*2, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*2, 95KPa biosafety transport tank*2
BTB-L15: Box*1, phase-change ice box (400ml)*6, absorbent cotton*3, shoulder strap*1, tray*1, digital thermometer*1, sponge test tube holder*3, 95KPa biosafety transport tank*3
Internal Size (W*D*H): 200*142*165mm | 240*145*180mm | 295*167*168mm | 325*170*225mm | 363*203*244mm
External Size (W*D*H): 266*215*225mm | 330*235*275mm | 335*225*205mm | 425*262*305mm | 425*262*305mm
Package Size (W*D*H): 380*270*300mm | 380*270*300mm | 380*270*300mm | 460*355*360mm | 460*355*360mm
Net Weight: 12kg | 2.5kg | 2.2kg | 4kg | 4.3kg
Gross Weight: 2.4kg | 3.2kg | 2.9kg | 4.5kg | 4.8kg

Technical Parameters — BTB-L20 / BTB-L33 / BTB-L55 / BTB-L65 / BTB-L85
Model: BTB-L20 | BTB-L33 | BTB-L55 | BTB-L65 | BTB-L85
Capacity: 20L | 33L | 55L | 65L | 85L
Internal & External Materials: PP+PE (all models)
Insulation Material: PU (all models)
Temp. Resolution: 0.1℃ (all models)
Manufacturing Process: Blow molding + injection molding, burr-free surface (all models)
Cooling Source Material: Sodium polyacrylate (all models)
Cooling Retention Time: Maintains an internal temperature of 2~8°C for over 24 hours at an ambient temperature up to 43°C (all models)
Sponge Test Tube Holder: Standard: 20 holes, compatible with 10ml test tubes; Optional: 11 holes, compatible with 20ml test tubes
Configuration (per model):
BTB-L20: Box*1, phase-change ice box (400ml)*9, shoulder strap*1, absorbent cotton*4, digital thermometer*1, tray*1, divider panel*1, sponge test tube holder*4, 95KPa biosafety transport tank*4
BTB-L33: Box*1, phase-change ice box (400ml)*11, absorbent cotton*5, digital thermometer*1, sponge test tube holder*5, 95KPa biosafety transport tank*5
BTB-L55: Box*1, phase-change ice box (400ml)*11, absorbent cotton*8, digital thermometer*1, sponge test tube holder*8, 95KPa biosafety transport tank*8
BTB-L65: Box*1, phase-change ice box (400ml)*15, absorbent cotton*12, digital thermometer*1, sponge test tube holder*12, 95KPa biosafety transport tank*12
BTB-L85: Box*1, phase-change ice box (400ml)*15, absorbent cotton*20, digital thermometer*1, sponge test tube holder*20, 95KPa biosafety transport tank*20
Internal Size (W*D*H): 380*245*230mm | 480*250*290mm | 590*335*320mm | 540*425*315mm | 580*465*320mm
External Size (W*D*H): 450*330*300mm | 570*310*360mm | 640*395*395mm | 620*485*375mm | 640*520*375mm
Package Size (W*D*H): 490*360*340mm | 585*325*390mm | 670*430*430mm | 640*505*395mm | 650*540*400mm
Net Weight: 4.8kg | 5.5kg | 8.3kg | 9.8kg | 13kg
Gross Weight: 5.5kg | 6.5kg | 9.3kg | 11kg | 14.3kg

Included Accessories (examples across models)

• Phase-change ice boxes (various counts & volumes depending on model)
• Absorbent cotton
• Digital thermometer
• Sponge test tube holders (standard/optional sizes)
• Shoulder strap (selected models)
• Tray and divider panel (selected models)
• 95KPa biosafety transport tank(s) (selected models)

Notes
Maintains 2~8°C internally for over 24 hours at ambient temperatures up to 43°C. Materials and manufacturing emphasize burr-free surfaces and integrated blow-mold/injection-mold construction.

caractéristiques / spécifications techniques

• Materials: Internal & external shell PP+PE; insulation: PU
• Temperature resolution: 0.1℃
• Cooling source: Sodium polyacrylate (phase-change cooling packs)
• Cooling performance: keeps internal 2~8°C for >24 hours at ambient ≤43°C
• Manufacturing process: blow molding + injection molding, burr-free surface
• Sponge test tube holder: standard 20 holes (10ml tubes); optional 11 holes (20ml tubes)
• Available capacities: 5L, 6L, 8L, 12L, 15L, 20L, 33L, 55L, 65L, 85L
• Accessories: phase-change ice boxes (250ml/400ml), digital thermometer, absorbent cotton, shoulder strap, tray, divider panel, 95KPa biosafety transport tank
• Multiple internal/external/package dimensions and weights provided per model (see technical tables above)
