导管导丝 Route

亲水

产品概述

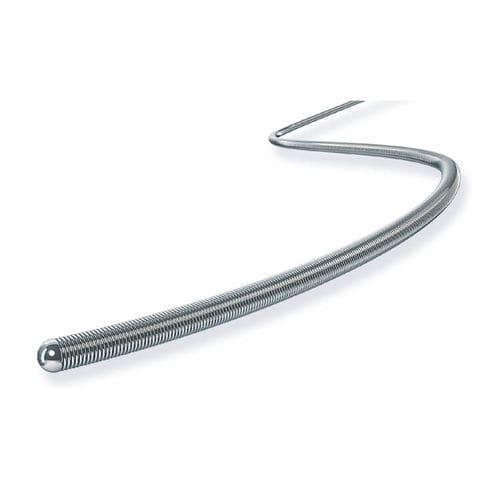

Route/PROWATERflex 是用于血管内介入的导丝。其特点为软性前端，具备形状记忆与良好可追踪性，有助于穿越病变并输送器械。硅胶涂层延伸至前端30 mm，提供直尖和J型尖两种选择。

产品规格

• Tip Load: 0.8gf
• Tip Shape: Straight / J-shape
• Radiopaque Length: 3cm
• Coating: Silicone＋Hydrophilic
• Usable Length: 180cm / 300cm
• Outer Diameter: 0.36mm (0.014")
• Coil Length: 20cm
• Structure: Visual structure available (structure image on product page)
• Category: Guidewire; Frontline

订购信息

• Route/PROWATERflex — Catalog No. AGH147000 — Tip Shape: Straight — Usable Length: 180cm — Outer Diameter: 0.36mm (0.014") — Coil Length: 20cm — Radiopaque Length: 3cm — Coating: Silicone＋Hydrophilic
• Route/PROWATERflex — Catalog No. AGH147000J — Tip Shape: J — Usable Length: 180cm — Outer Diameter: 0.36mm (0.014") — Coil Length: 20cm — Radiopaque Length: 3cm — Coating: Silicone＋Hydrophilic
• Route/PROWATERflex — Catalog No. AGH147300 — Tip Shape: Straight — Usable Length: 300cm — Outer Diameter: 0.36mm (0.014") — Coil Length: 20cm — Radiopaque Length: 3cm — Coating: Silicone＋Hydrophilic
• Route/PROWATERflex — Catalog No. AGH147300J — Tip Shape: J — Usable Length: 300cm — Outer Diameter: 0.36mm (0.014") — Coil Length: 20cm — Radiopaque Length: 3cm — Coating: Silicone＋Hydrophilic

注意事项
“Route” 和 “PROWATERflex” 为 ASAHI INTECC CO., LTD. 在日本及其他国家的商标或注册商标。
Tip Load 值基于公司标准化试验测得，表示导丝尖端在推压病变时的受力；实际器件存在个体差异，测得值可能有所不同。

特性 / 技术规格

• Tip Load: 0.8gf
• Tip Shape: Straight or J-shape
• Radiopaque Length: 3 cm
• Coating: Silicone + Hydrophilic (silicone coating up to 30 mm from the tip)
• Usable Length: 180 cm and 300 cm options
• Outer Diameter: 0.36 mm (0.014")
• Coil Length: 20 cm
• Category: Guidewire / Frontline
