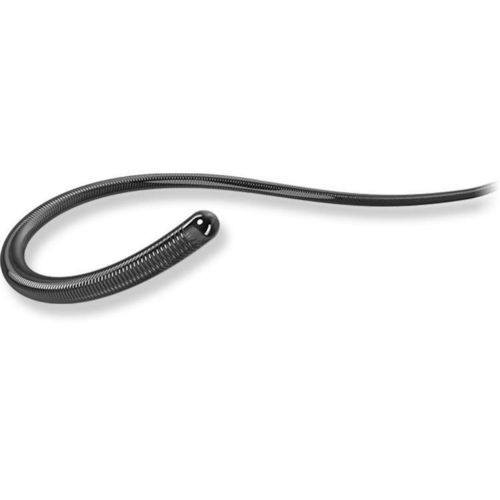

导管导丝 Gladius MG18 PV ES

周围神经系统亲水

概述
用于辅助末梢慢性完全闭塞（CTO）穿透的导丝。改良的远端芯配合微隙形成狭窄环，可降低病变阻力并限制亚内膜腔扩展。

主要特性

• 狭窄环：Micro Gap — 在通过病变时保持狭窄环以最小化阻力并减少扩展亚内膜腔的倾向。
• 持久润滑性：聚合物护套与亲水涂层 — 高润滑性支持在长段闭塞中平稳推进。
• 尖端耐久性：狭窄环设计较传统设计降低弯折与扭转等变形风险。
• 迷你预形态：可根据手术需要塑造成较大弯曲，且保持良好形状保持性。

技术 — ACT ONE
ACT ONE为多股线圈技术，优化导丝及微导管的扭矩力、扭矩响应、耐久性与刚性，以提供稳定性能。

产品规格
Tip Load: 3gf
Tip Shape: Pre-shape
Radiopaque Length: 4.5cm
Coating: Polymer＋Hydrophilic
Usable Length: 190cm / 235cm / 300cm
Structure: (产品页提供结构示意图)
Category: Guidewire, 0.018"

订购信息（代表性型号）
Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R004P — Tip Shape: Pre-shape — Usable Length: 190cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R004S — Tip Shape: Straight — Usable Length: 190cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R204P / PP18R204S — Tip Shape: Pre-shape / Straight — Usable Length: 235cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

Product Name: ASAHI Gladius MG18 PV ES — Catalog No.: PP18R304P / PP18R304S — Tip Shape: Pre-shape / Straight — Usable Length: 300cm — Outer Diameter: 0.46mm (0.018") — Coating: Polymer Jacket + Hydrophilic Coating — Coating Length: 10cm — Coil length: 4.5cm — Radiopaque Length: 4.5cm

注意事项
* 所有数据均来自公司标准化测试，可能与行业标准测试有所不同。个别器械的测量值可能存在差异。
